Lowrance Elite 5 Dsi Wiring Diagram

Power Data cable wiring diagram. I waffled a bit between the Elite 5 and Elite 7.


Elite Om En 988 0180 01 A W

Slide the adjustable strap hose clamp through the plastic bracket on the skimmer transducer or through the Pod transducer slots and then slip the strap around the trolling motor.

Lowrance elite 5 dsi wiring diagram. Red wire. So have any of you out there have ever had a problem with your unit not showing the bottom. Steer Sonar Chart Sonar and Chart.

Elite-5 DSI Unit Manual and Accessories Background Map and NMEA PCRS. Advanced Mode Enables advanced features and settings. View and Download Lowrance Elite-5 DSI operation manual online.

Elite-5 DSI gps pdf manual download. What is the yellow labeled yellow NC. Lowrance elite 5 hdi wiring diagram.

With fuse and. Sonar Page Sonar menu Elite 5 only Chart or sonar menu will appear Pages menu depending on which panel is Page context menus active. I finally decided to save the extra 300 to put towards a mooring cover and go with the Elite 5 DSI when I found out it like the Elite 7 had NMEA 0183 output.

Cable Extension For Lowrance Elite 5 Dsi Elite. There are two cables coming out of the power plug. No part of this manual may be copied.

Position the transducer so its face is pointing straight down when the trolling motor is in the water. Connecting a Lowrance Elite 5 DSI to an Icom IC-M422 with the NDC-4 adapter cable. The following features are enabled when Advanced.

Elite-7 Fish Finder Lowrance ELITE-4X HDI Operation Manual. Basic Operation Menu operation This unit has four page screens. Lowrance Elite 5 Chirp Wiring Diagram.

Having a set budget I ended up ordering a Lowrance Link 5 DSC VHF and the Lowrance Elite 5 DSI. Well this happened to me with my Lowrance Elite 5 Ti and with so. Lowrance Elite 5 Hdi Wiring Diagram bassboatcentral stratos1 htmTo have your STRATOS added to this list click on Add a Boat fill in the form and hit Submit Your boat will be added asap To add a photo s to your listing e Lowrance Elite 5 Hdi Wiring Diagram bassboatcentral viper htm95 Cobra Travis Edition 95 225 Merc Fury prop manual jackplate Lowrance Elite7ti Motorguide 74.

Just purchased this unit. Please click on the link below to see a scan of the wiring diagram sent with my Elite 5 HDI combo unit. Chirp wiring diagram lowrance elite 5 wiring diagram lowrance elite 5 hdi is one of grown content at the moment.

Power cable 3 wire Data cable 5 wire The diagram above shows how the PowerData cable connects to power. Dual frequency DSI Skimmer transducer 455800kHz with built in temp. The Data cable wires are used for.

The installation wiring manual that was included in the package is just a basic wiring diagram. The cables yellowtransmit to the radios redin and cables orangereceive to radios whiteout appear straightforward. Matches 1 - 10 of 15 Did you mean.

Vr nmea wiring diagrams Created. Select Standby and press EntEr. Please use the box above to search for any other information.

Elite-5 DSI Unit Manual and Accessories Information. Mark Elite Software Version Elite HDIElite CHIRP and Mark-4 Software Upgrade. Lowrance Elite 5 DSI.

Lowrance Elite 5 Dsi Wiring Diagram. Lowrance gives a wiring schematic but they assume I have some experience with Lowrance Elite-5 HDI with 83 kHz and kHz. Accessory W ake Up line.

Lowrance DSI Skimmer Transom Mount Transducer with built-in temperature sensor. Page 1 Elite 5 DSI Operation manual f. Lowrance Elite 5 Hdi Wiring Diagram.

Page 2 Copyright 2010 Navico All rights reserved. Flat washer Lock nut Bolt. Basic Operation Elite-5 Elite-7 10 PB Elite-5 Elite-7 Press the PWrLight key to access the Backlight dialog.

The Elite 5 is a super unit that wont set you back a bunch of mon. Lowrance gives a wiring schematic but they assume I have some experience with nmea wiring. The yellow wire is the.

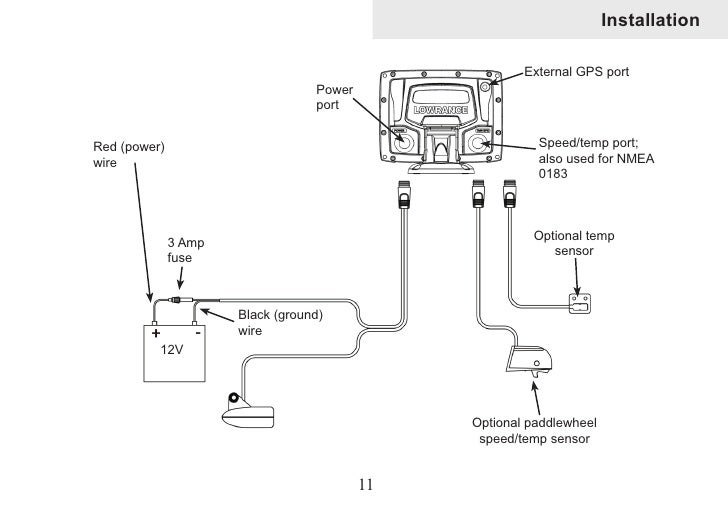

Wiring diagram optional temp sensor optional speed sensor dsi transducer fuse battery transducer power cable. In this 4th video of the series Ill install the Lowrance Elite 5 Chirp on my pond boat. View and Download Lowrance Elite-7 Broadband installation manual online.

Replacement DSI skimmer transducerWorks with. Press any key to resume normal operation. The installationwiring manual that was included in the package is just a basic wiring diagram.

Summary of Contents of user guide for Lowrance elite-5 dsi. Bracket as shown in the diagram. Our system has returned the following pages from the Lowrance Elite-5 HDI data we have on file.

35 pagesMultiple selections Lowrance and Airmar Installation Guide Declaration of Conformity EU RTTE Elite-7 HDI Elite-7m DEC Elite 55m and Elite 77m RTM Addendum EN Software Updates. Nevertheless I dont understand some things and I want to make sure I get it right when I wire it. Lowrance gives a wiring.

Elite-5 DSI Elite-5x DSI Mark-5x DSI. One labeled powerdata cable. Matches 41 - 50 of 50 Click here to see a wiring diagram.

Press The Sonar ChartSonar and Chart pages have menus PAGES ChartSonar page. This has red black and a yellow wire. So I am asking fellow OGFers for help.

Red is power black is ground. Includes black Uniplug connector with power cable and 20ft cable mounting bracket and hardware. Basic operation elite 5 hdi 6 7 elite 5 hdi selecting pages to select a page press the keypad in the direction of the.

Restore defaults Resets unit options and settings to defaults. Lowrance Elite 7 Wiring Diagram Setup wizard the setup wizard will appear when the unit is turned on for the first time.


Lowrance Nmea 0183 Adapter Cable


Lowrance Elite 4 Hdi Battery Setup Youtube


I Am A Little Confused On The Electrical Hook Up For The Elite 5 X Dsi Dsi This Is Being Installed In A Boat With No


I Have A Lowrance Elite 7 Hdi And A Uniden Um380 Radio I Would Like To Know How To Hook Up The Nmea 0183 From The


Installing A Lowrance Elite 5 Chirp Youtube


Elite 7x Lowrance Anciens Et Reunions


Manual Lowrance Elite 5x Dsi Page 17 Of 22 English


Connecting Gps To Vhf The Hull Truth Boating And Fishing Forum


Elite 5 Hdi Fishfinder Lowrance Youtube


Lowrance Elite 5 Sonar Gps Installation Operation Manual Pdf Download Manualslib


Lowrance Elite 4 Chirp Dsi 83 200 455 800 000 11807 001


Manual Lowrance Elite 5x Dsi Page 17 Of 22 English


Lowrance Elite 5 Wiring Diagram Diagram Base Website Wiring


Lowrance Elite 5x Mark 5x Pro Mark 5x Mark 5x Dsi Operating Instructions Manualzz


Manual Lowrance Elite 5x Dsi Page 17 Of 22 English


Manual Lowrance Elite 5x Dsi Page 17 Of 22 English


Manual Lowrance Elite 4x Dsi Page 1 Of 22 English


Lowrance Elite 5 Hdi Review


Lowrance Elite 5 Wiring Diagram Diagram Base Website Wiring
